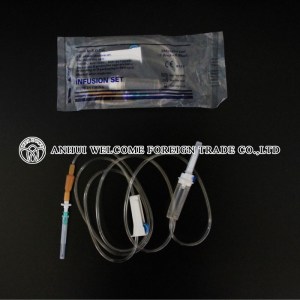

Infusion Set

%e8%be%93%e6%b6%b2%e5%99%a8
1. Piercing device–Made of medical grade white ABS, with or without air Inlet, 3 or 4 holes size according to ISO8536-4 standard.
2. Protective cap–Made of PP or PE.
3. Drip chamber–Made of soft PVC, size according to ISO8536-4 Standards, 4.5cm–7cm in length.
4. Fluid filter–Support is made of ABS or PE, nylon net, mesh size: 15 micron.
5. Air inlet–Cap is made of red, white, or blue PP
6. Water-repellent filter-PP support, hydrophobic filtering paper, made of Acrylic resin and nylon.
7. Flow regulator–Made of PP or ABS, normal shape, small size or horned Shape, large size.
8. Injection site–Latex cone, rubber cone, synthetic rubber cone, Y site- Made of hard transparent PVC+injection site made of natural or synthetic Rubber.
9. Soft tubing–Made of soft medical grade PVC, diameter 3X4mm, 150cm in length, or adjust according to requirements…
10. Terminal connector: Made of PE, PVC, luer lock or luer slip.
11. Components assembly: By gluing with solvent cyclohexanone
