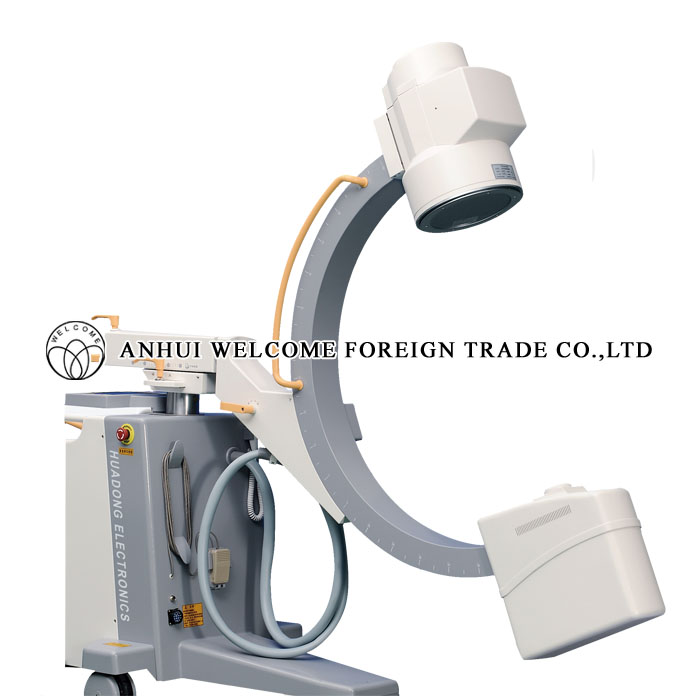

AHDG3310B High Frequency Mobile Digital C-arm System



Widely use in operating room, X-ray department,emergency room ,intervention and peripheral angiography.

General surgery ,urology, chest surgery,trauma, spine surgery, abdominal surgery, orthopedics ,bone reduction and fixation, endoscopy and surgery.Intervertebral disc angiography  and angioplasty .


Key features

1With HF & HV generator,inverter,and High quality image intensifier, the x ray generator can work stably.It also reduces the damage for the doctors caused by radiation.

2)10.4″LCD friendly interface control board: easy operation and can be rotated to 180°(L90°,R90°) Compared with ordinary key board, our LCD display is not easy to be oxidized Besides, the trouble will be displayed in Chinese, which will improve the efficiency of fault diagnosis.

3)Pulse and boost fluoroscope provides all kinds of size of patients with clear diagnosis.

4)With a steering handle, it can adjust the direction quickly when moving.And  parallel movement function is also available.

5) Equipped with unique block line wheels, it can avoid accident when the machine moves.

6)Large free space in arc: the space can reach 800mm,which is convenient for operation.

7)9″/6″/4.5″ three fields of vision:it facilitates diagnosis of partial enlargement.

8)CCD camera with rotation function:range of camera rotation:360°.

9)Original Korean linear slide rail can make the the movement of the machine flexibly.

10)Applied with Omron Relay, the noise can be reduced and the life time of the equipment can be increased.


Main specification
HF generator 110KV, 3.5kW , 40kHz


Fluoroscopy mode

Fluoroscopy mode40~110kv0.5~5mA

(KV manual and automatic);

Pulsd fluoroscopy 40~110kv  0,5-5mA

Boost fluoroscopy 40~110kV 5~10mA;

Photography 40~110kV  1~250mAs


X ray tube

Dual-focus fixed anode:0.6mm/1.5mm



Image intensifier Three fields of vision 9, 6, 4.5   French Thales Brand
CCD camera 1 million pixel, Japanese Watt Brand, 360° rotation


Image system

Recursive Noise Reduction

Frame freezing

Multi frame image storage

Image conversing and rotating

Screen display with image comparison


Mechanical motion specifications Verticaltravel:0-400mm              Horizontaltravel:0~200mm                      Rotation about horizontal axis:±180°


C-arm dimension

Distance of focal spot to image generator(SID):1000mm

Depth in arm≥650mm                                                 Mobile stand :1800mm*800mm*1850mm

Image system: 750mm*530mm*1680mm




Standard configuration

High resolution CCD camera:1set

x-ray generator:1set

9” image intensifier:1set

image processor

23” LCD high definition display 1 set

Mobile stand :1 set



Packaging & Shipping

Packaging Details: Size: A) 252×93×174cm B) 90×80×140cm  GW:500KG
Warranty Period One-year
Delivery Detail: Normally 10-15 working days based on receipt of the deposit by TT or L/C At Sight
